We are pleased to announced the rods for the Honda D series motors are now available. Here are a few words from Larry:

"The reasons for redesigning the D Series rods were few, but we simply felt that a few changes could be made that would place these rods in a class all their own in both quality and price.

The reduced rod dimensions permit use in more applications than previously with less massaging necessary to make adequate clearances. While slimming down the rod, the opportunity was available to make it a superior component (structurally) to any other rod on the market, regardless of pricing.

We elected to take advantage this re-design and the new and improved product is here and ready for use.

Our engineering team has taken data from this revised program and made appropriate changes to our other Honda series rods, so we should be delivering on a more timely basis in the future.

We appreciate the patience of our customers and I believe that our changes will be appreciated by everyone in the marketplace."

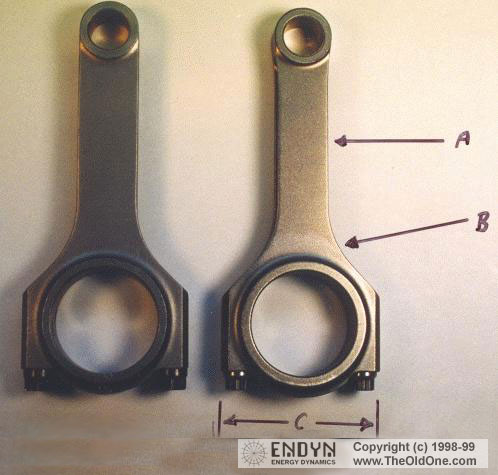

Revisions in the D rods explained: (A) The beam width of the rods has been reduced in width to reduce reciprocating mass slightly. (B) The flank has also been reduced in radius to permit more material to remain at the lower portion of the cylinder bores. (C) The overall span width of the big end has been slightly reduced to allow the rod to be used in special small bore applications.

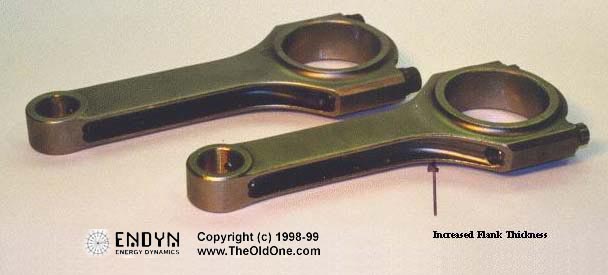

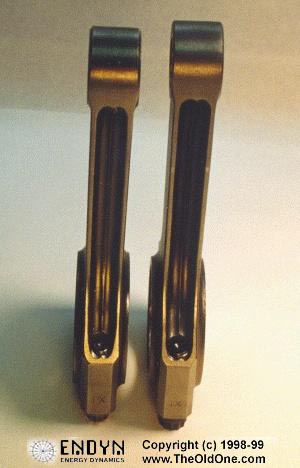

A few shots of the revised D series rods versus the early test batch.

Rod Spec - Honda 1.6 liter D motors including ZC's (88+ Civic/CRX)
Engine Fitments	1988-current Civic 1.6 SOHC 1988-1991 CRX 1.6 SOHC 1992-1997 del Sol 1.6 SOHC 1986-1989 Integra 1.6 DOHC Various Japan ZC's with 75x90 mm bore x stroke
Rod Part Number	CRS5394H3D
Center to Center Length	5.394" (137.00 mm)
Big End Diameter	1.890"
Big End Width	0.892"
Small End Diameter	0.748"
Small End Width	0.717"
Small End Bushing	Full Floating Pins
Total Weight	512 grams
Rotating Weight	375 grams
Reciprocating Weight	137 grams
Bolts	ARP 2000
Torque	28 ft-lbs w/Moly
Bolt Stretch	0.0048" - 0.0052"

Some shots of the original prototype rod.

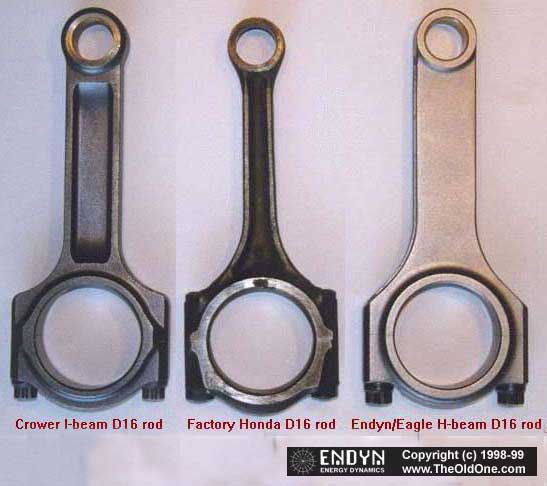

At a glance: left to right: Crower, Stock, ENDYN/Eagle

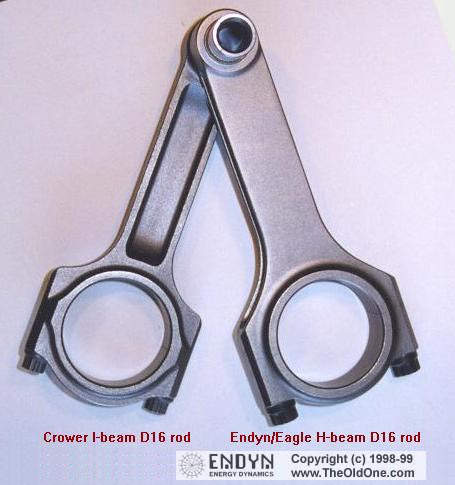

Close up of Crower vs. ENDYN/Eagle: notice the big ARP 2000 series rod bolts! Also notice the thin bushing we use on the small end which allows for increased integrity.

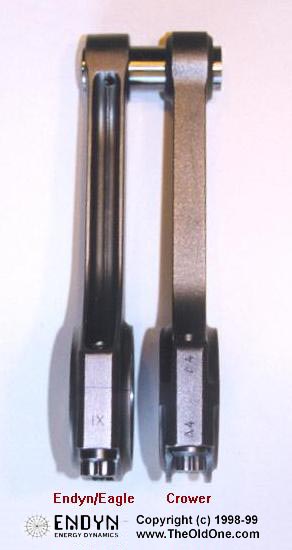

Side view of Crower vs. ENDYN/Eagle: H beam vs. I beam

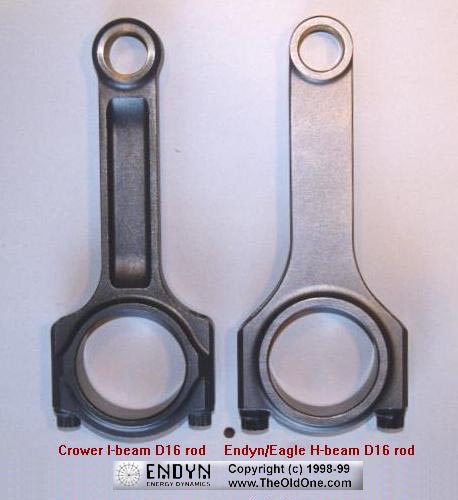

Two quality rods: While both can take significantly more abuse than stock, we hope you see the extra length we went to ensure that we are making the finest quality connecting rod for the mass.
